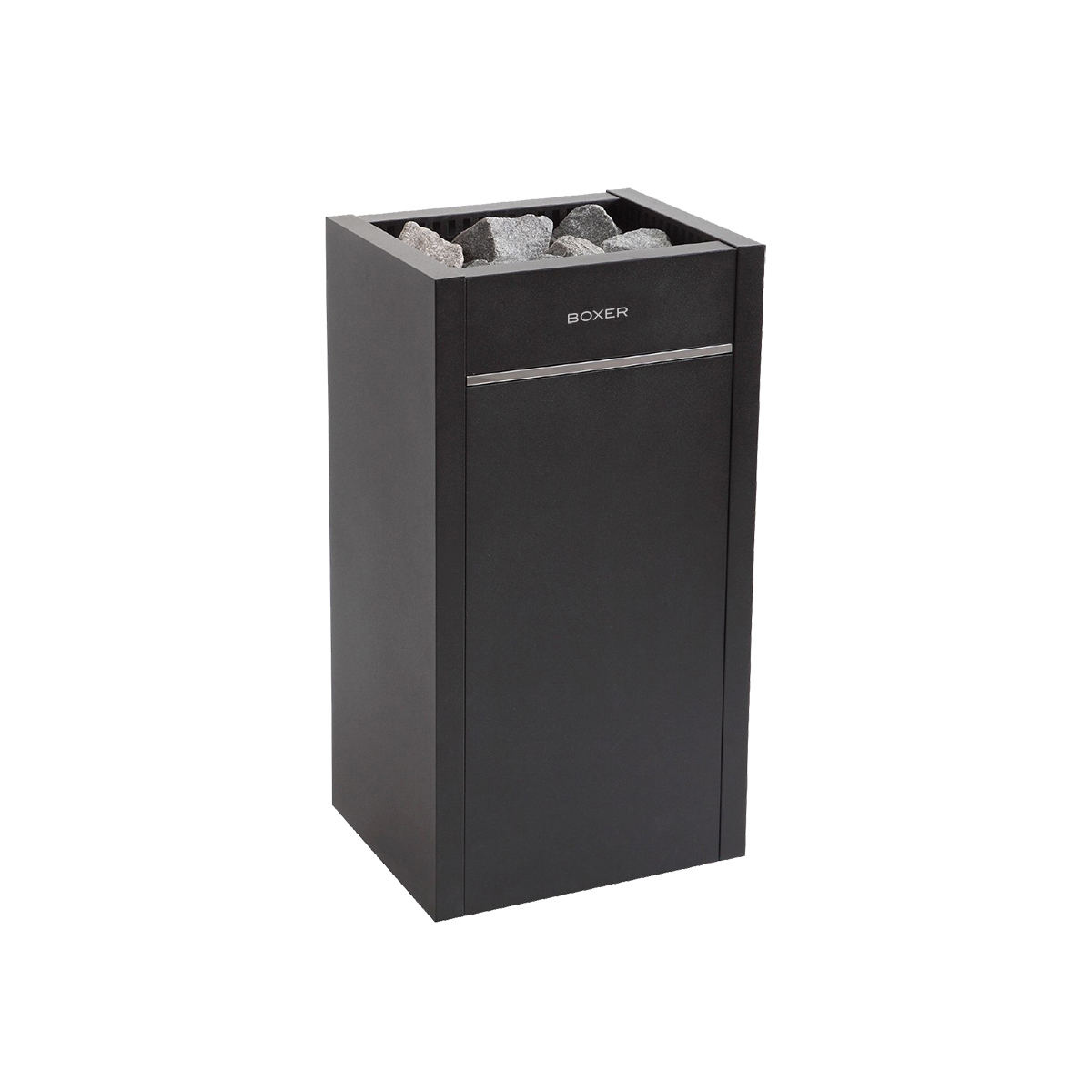

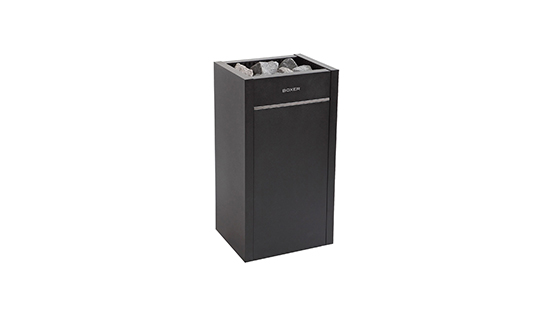

Electric sauna heater Boxer Heater Commercial BCA-seri
The Boxer BCA heater's strong structure and exceptional ease of maintenance make it excellently suitable for those who use the sauna often and like to enjoy the steam for long periods of time. All connections to the BCA heater are made through the maintenance hatch on the front. There is plenty of room around the connections. The heating elements are separated from the stones, which results in a long heating element life span. If you need to replace a heating element, it is a quick and easy task, as you can just pull out the entireheating element module. Other maintenance measures were also taken into account in the heaters’ design from the very start.
| Model | Power KW | Heating Element Type | Sauna Room (Min - Max) | Voltage | Dimensions (W-D-H) | Wire (mm2) | Stones | Control | Fuse | |||
| BCA-60 | 6.0kw | SD60E | 4 | 6 | 380V 3N | 455 | 360 | 820 | 5x2.5 | 50kg | separate | 3x10 |
| BCA-75 | 7.5kw | SD75E | 5 | 10 | 380V 3N | 455 | 360 | 820 | 5x2.5 | 50kg | separate | 3x10 |
| BCA-90 | 9.0kw | SD90E | 8 | 14 | 380V 3N | 455 | 360 | 820 | 5x2.5 | 50kg | separate | 3x16 |
